747 - floor fitting (body) for Nissan Vanette Serena KVC23
| |||||||||||||||||||

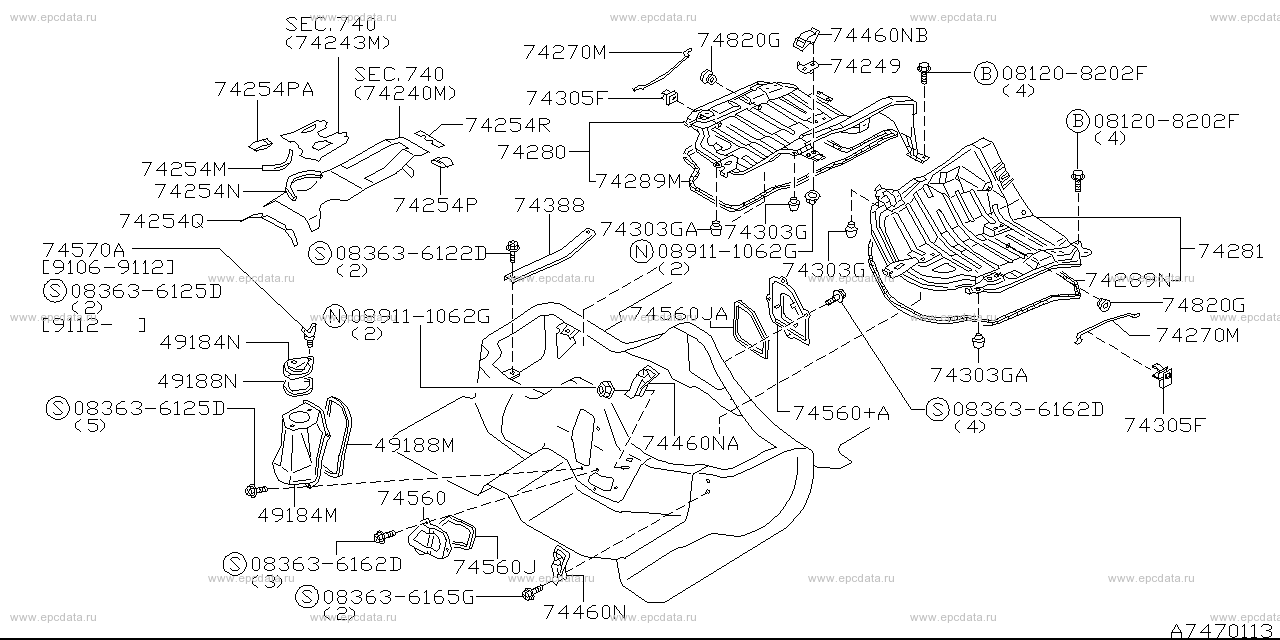

| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +4DV +5DV | 01.1997 - 01.1998 | フロント |
| W +4DV +5DV | 01.1998 - ... | フロント |
| 081208202F 083636122D 083636125D 083636162D 083636165G 089111062G 49184M - cover, body tank 49184N - cover, body tank upper 49188M - seal, body tank cover 49188N - seal, body tank cover upper 74249 - plate, spring 74254M - seal, member RH 74254N - seal, member LH 74254P - seal, member 74254PA - seal, member 74254Q - seal, member front 74254R - seal, member rear 74270M - rod, engine cover 74280 - cover, engine RH 74281 - cover, engine LH 74289M - seal, engine cover RH 74289N - seal, engine cover LH 74303G - bumper rubber 74303GA - bumper rubber 74305F - clip 74388 - stay, front floor rear 74460N - handle assembly, assist seat cushion 74460NA - handle assembly, assist seat cushion 74460NB - handle assembly, assist seat cushion 74560 - cover, inspection hole 74560+A - cover, inspection hole 74560J - seal, inspection hole cover 74560JA - seal, inspection hole cover 74570A - bolt 74820G - grommet |

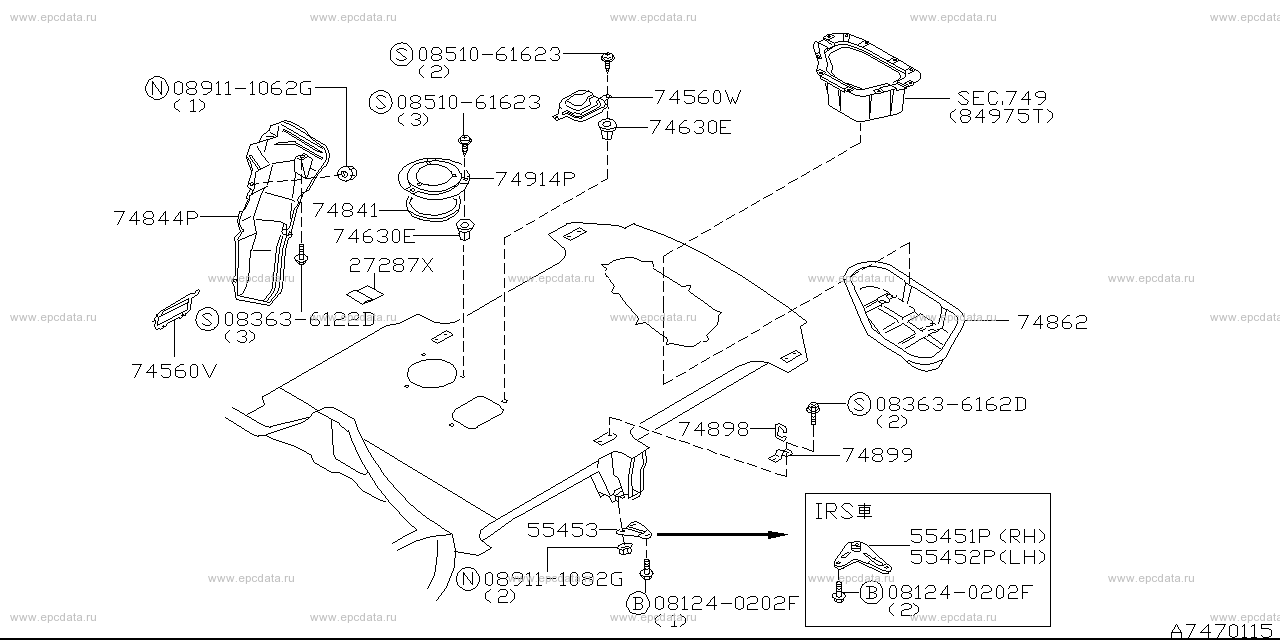

| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +4DV +5DV | 01.1997 - 01.1998 | リヤ |
| W +4DV +5DV | 01.1998 - ... | リヤ |
| 081240202F 083636122D 083636162D 0851061623 089111062G 089111082G 27287X - seal cooling unit 55451P - stay, rear suspension member RH 55452P - stay, rear suspension member LH 55453 - stay, rear suspension member 74560V - cover, cooler rear 74560W - cover, sensor 74630E - grommet, screw 74841 - seal, fuel tank cover 74844P - protector, filler tube 74862 - box, luggage 74898 - hook assembly, rope 74899 - bracket, rope hook 74914P - cover, fuel tank |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| W +4DV +5DV | 01.1997 - 01.1998 | engine ｱﾝﾀﾞｰ cover, transmission ｱﾝﾀﾞｰ cover |
| W +4DV +5DV | 01.1998 - ... | engine ｱﾝﾀﾞｰ cover, transmission ｱﾝﾀﾞｰ cover |
| 083638201D 50861M - cover, transmission under 74630A - screw 74630AA - screw 74670A - bolt 74811 - cover, engine lower 74811N - cover, transmission under 75886 - bracket, front under cover 75886+A - bracket, front under cover 75897 - member, engine under cover 75898M - cover, front under |
